Productinformatie
Processor |
Processorfabrikant |
Intel |
Processor socket |
(Intel) LGA 1700 |
Compatibele processors |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
Geheugen |
Ondersteunde geheugen types |
DDR5-SDRAM |
Aantal geheugenslots |
4 |
Geheugen kanaal |
Duaal |
Supported memory clock speeds |
6800,6600,6400,6200,6000,5800 5600,5400,5200,5000,4800MHz |
Maximum intern geheugen |
192 GB |
Interne aansluitingen |
USB 3.2-connectoren (3.1 Gen 2) |
Ja |
Aantal SATA III connectors |
4 |
Interne aRGB header (3-pins) |
Ja |

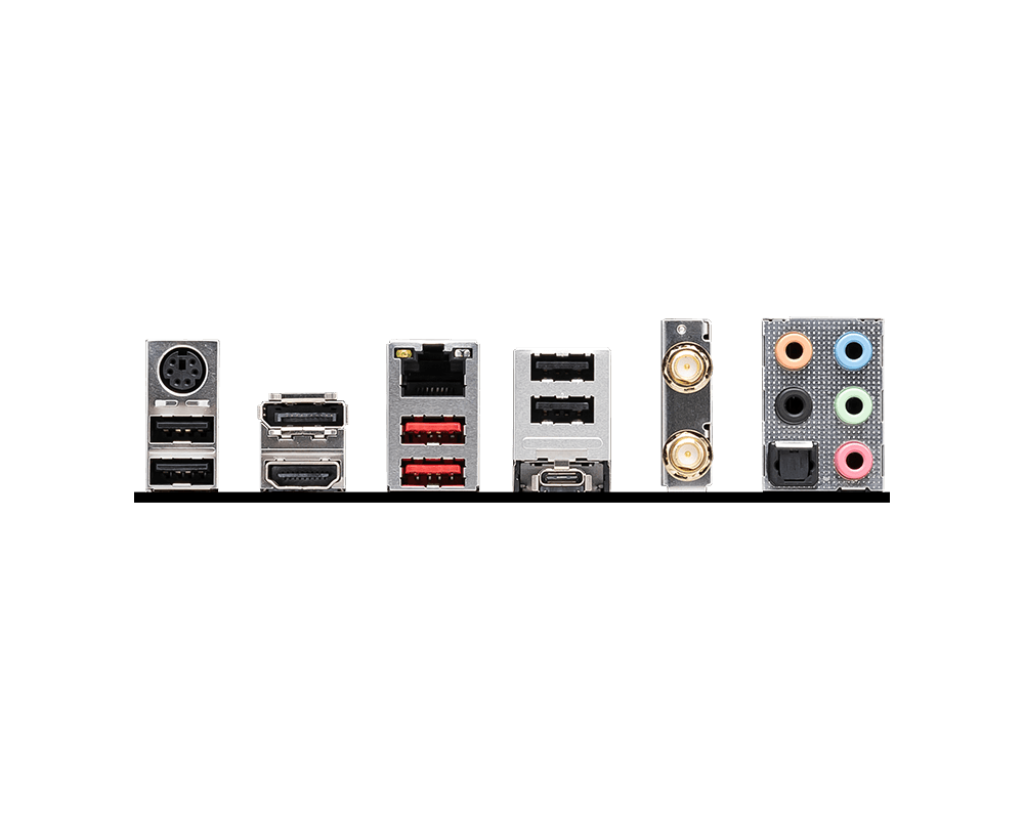

Aansluitingen achterzijde |
Aantal USB 2.0-poorten |
4 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A |
2 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C |
1 |
Aantal HDMI-poorten |
1 |
HDMI versie |
2.1 |
Aantal DisplayPorts |
1 |
DisplayPort versie |
1.4 |
Netwerk |
Ethernet interface type |
2.5 Gbit |
LAN controller |
Realtek® RTL8125BG |
Wifi |
Ja |
Wifi-standaard |
Wi-Fi 6E (802.11ax) |
Wi-Fi-standaarden |
802.11 a/ b/ g/ n/ ac/ ax |
Bluetooth |
Ja |
Bluetooth-versie |
5.3 |
Kenmerken |
Moederbord form factor |
ATX |
Chipset moederbord |
Intel B760 |
Audiochip |
Realtek ALC897 |
Audio-uitgangskanalen |
7.1 kanalen |
Uitbreidingsmodules |
PCI Express x16 (Gen 3.x) slots |
3 |
Aantal M.2 (M) slots |
2 |
PCI Express x16 (Gen 4.x) slots |
2 |
Gewicht en omvang |
Breedte |
243.84 mm |
Hoogte |
304,8 mm |
